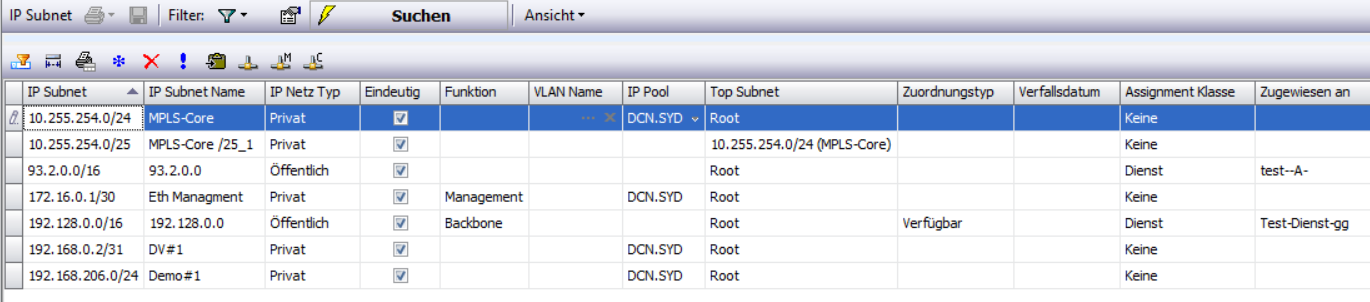

IP subnets manage an IP address range and can be described by the following properties:

•IP Subnet: IP Subnet base address and range/ mask

•IP Subnet Name: User-defined name for the subnet, editable in pool view.

•IP network type: For internal addresses private, for public public, will be set automatically when creating subnet

•Unique: System-wide unique address or multiple possible in different subnets

•Function: User name/property of subnet, editable in pool view

•VLAN Name: displays the name of the assigned VLAN, editable in pool view

•IP Pool: shows the assigned IP Pool, editable in pool view

•Top subnet: shows the highest parent subnet in the address hierarchy, shows root if it is the top subnet itself

•Assignment type: If the entire subnet is assigned to a type, the type is displayed, possible values: empty, reserved, used, available, assigned, quarantine

•Expiration date: Available for Reserved and Quarantine assignment types.

•Assignment Class: If the entire subnet is assigned to a service or company, the class is shown here, Values: empty, service, company

•Assigned to: If the subnet is assigned to a class service or company the assigned name is shown here
