Pool & Details Window

General

Without External Segment Visibility, external data is not shown in Pool or Detail views. Values are hidden by the External text and grayed out. No context menu is available.


Details Window

There are new Network Segment fields in Detail views, which show the current membership of the objects.


•Segmentation: Local or Distributed

•View or if Editable (Edit)

•Shows if the object is in any external Segments as well (*****)

•Shows which user can see or edit the object (only for Network Segment Master users)



With External Segment Visibility


Assigned Segments
6716A6~1_img59

Details6716A6~1_img60


Without External Segment Visibility

Assigned Segments
6716A6~1_img61

Details
6716A6~1_img62


Pool Window

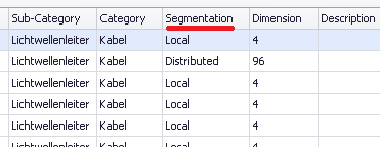

In some Pool views a new column “Segmentation” is shown. It shows if the object is Local or Distributed. This is only for Pool views of Line - objects like Components and Phys. Paths.


New column

6716A6~1_img63


Without External Segment Visibility


6716A6~1_img64


With External Segment Visibility

6716A6~1_img65
