AR - Route-Redundancy for Cables
Feature in Auto Routing Module to find redundant cables which are not running over same top level parent duct/trench. So if you want to find a backup path to an existing path you can avoid Auto-Routing from showing backup paths that running over a parallel cable of the master path that is in the same duct or trench.
Option 1 |
No same parent component allowed
|
Option2 |
Allow first and last cable to be the same as in the master path
|
Hint1 |

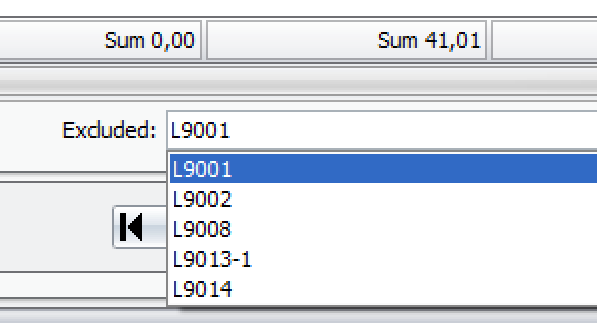

In the next tab ways you can find which cables finally were excluded from the backup path way search
|
